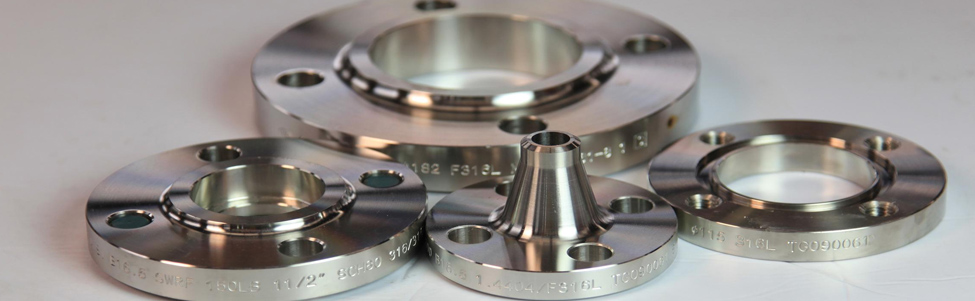

We can offer a comprehensive range of ANSI B16.5 / ASME B16.47 Flanges for the right technical solution. MD Exports LLP manufacture & export wide selections of ANSI B16.5 ANSI B16.5 / ASME B16.47 Flanges ASME B16.47 ANSI B16.5 / ASME B16.47 Flanges

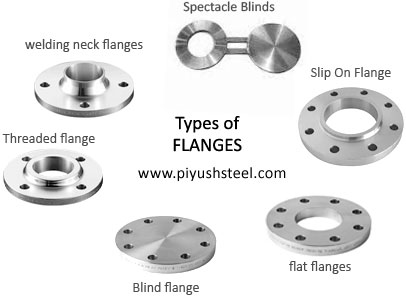

The most used flange types acc. to ASME B16.5 are: Welding Neck, Slip On, Socket Weld, Lap Joint, Threaded and Blind flange.
Material Grades
Stainless Steel ASTM A182 F304/L
F310
F316/L
F321/H
F347/H
F410
F440
904L
Carbon Steel ASTM A105, C22.8
Low Temperature Steel ASTM A350 LF2, LF3, LF6
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
High Yield ASTM A694 F42, F52, F60, F65, F70
6% Moly / Duplex & Super Duplex ASTM A182 F44, F51, F53, F55
Nickel Alloys 200, 400, K500, 600, 625, 800, 825
Alloys ALLOY 20
ALLOY C
ALLOY C276
ALLOY B2
Aluminium - contact us for stock availability5083, 5154, 5251, 6061, 6063, 6082
Other Grades - contact us for stock availabilityBronze, Brass, Copper
Cupro Nickel
Titanium
Standard
Sizes
Wall Thickness
Dimensions and Pressure Ratings
- ANSI, MSS- SP-44, BS3293, API 605 150lb through to 2500lbFacings: Raised Face, Ring Type Joint, Large Tongue & Groove, Small Tongue & Groove
We can also supply Special items according to customer drawings.
ANSI B16.5 / ASME B16.47 Flanges are individually wrapped by hand to ensure that the high quality of the material is maintained and no damage in the last stages of production. We recommend Plywood cases or pallet packaging to ensure safe packaging and prompt delivery of the ordered consignment.
ANSI B16.5 / ASME B16.47 Flanges come with imprints relevant to the job information (eg, heat number, size, material and part number). This information is also printed along all delivered ANSI B16.5 / ASME B16.47 Flanges.
ASME B16.5 Welding Neck Flange
ANSI Class150 4" Welding Neck Flange
Forged F304 B16.5 150LBS Slip On Flange
Flange f304 a105 rf/ff slip on flange pn16 150ib
bs4504 pn16 socket welding flange high quality
150lb socket welding stainless flanges F316
lap joint flange a105
ansi b16.5 class 150 lap joint flange
ANSI Class150 Threaded Flange
threaded flange
EN1092 Forged Steel Blind Flange
stainless steel pn10 blind flange
spectacle blind B16.48/API590
square flange
