A leading manufacturer, exporter, suppliers & stock holder of ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes & we provide a comprehensive range of ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes.
We manufacture ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes in India for export all around the world.
Home
Products Carbon Steel ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes

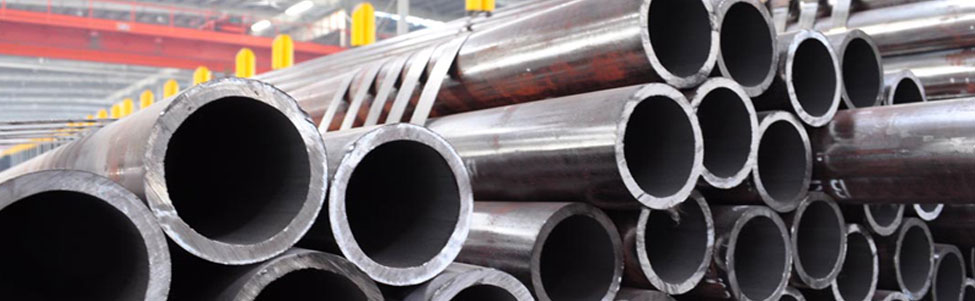

ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes
Contents-
1. ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes Specification
2. ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes Packaging & Marking
3. ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes Price
3. ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes useful info
4. Carbon Steel Inventory
We are supplying a comprehensive range of ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes for the right technical solution. MD Exports LLP manufacture & export wide selections of ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes, ASTM A106 Grade A/ASTM A106 Grade B/ASTM A106 Grade C at most attractive price as per customer requirements, we can also manufacture ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes in ASTM/ASME/ANSI grades as per our customer budget, we enjoy the reputation supplying ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes at cheapest in steel industries around the globe.
ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes Specification
Port: JNPT PORT, MUMBAI (INDIA)
Payment Terms: L/C, T/T, Western Union
Chemical Requirements
| Composition, % | |||
| Element | Grade 1 | Grade 3 | Grade 6 |
|---|---|---|---|
| Carbon, max | 0.30 | 0.19 | 0.30 |
| Manganese | 0.40 - 1.06 | 0.31 - 0.64 | 0.29 - 1.06 |
| Phosphorous, max | 0.025 | 0.025 | 0.025 |
| Sulfur, max | 0.025 | 0.025 | 0.025 |
| Silicon | 0.18 -0.37 | 0.10 min | |
| Nickel | 3.18 - 3.82 | ||
For each reduction of 0.01% carbon below 0.30%, an increase of 0.05% manganese above 1.06% would be permitted to a maximum of 1.35% manganese.
When Grade 6 is ordered under this specification, supplying an alloy grade that specifically requires the addition of any element other than those listed for the ordered grade is not permitted. However, the addition of elements required for the deoxidation of the steel is permitted.
Tensile Requirements
he material shall conform to the requirements as proscribed:
| Grade 1 | Grade 3 | Grade 6 | ||||
|---|---|---|---|---|---|---|
| psi | MPa | psi | MPa | psi | MPa | |
| Tensile Strength, min | 55,000 | 380 | 65,000 | 450 | 60,000 | 415 |
| Yield Strength, min | 30,000 | 205 | 35,000 | 240 | 35,000 | 240 |
| Longitudinal | Transverse | Longitudinal | Transverse | Longitudinal | Transverse | |
| Elongation in 2 in. or 50 mm, (or 4D), min, %: | ||||||
| Basic minimum elongation for walls 5/16 in. [8 mm] and over in thickness, strip tests, and for all small sizes tested in full section | 35 | 35 | 30 | 20 | 30 | 16.5 |
| When the standard round 2-in. or 50-mm gage length or proportionally smaller size test specimen with the gage length equal to 4D (4 times the diameter) is used | 28 | 20 | 22 | 14 | 22 | 12 |
| For strip tests, a deduction for each 1/32in. [0.8 mm] decrease in wall thickness below 5/16 in. [8 mm] from the basic minimum elongation of the following percentage | 1.75 | 1.25 | 1.50 | 1.00 | 1.50 | 1.00 |
| Elongation in 2 in. or 50 mm, min, %: | ||||||
| Size of Specimen, min | Minimum Average Notched Bar Impact Value of Each Set of Three Specimens | Minimum Notched Bar Impact Value of One Specimen Only of a Set | Impact Temperature | ||||
|---|---|---|---|---|---|---|---|
| ft-lbf | J | ft-lbf | J | Grade | Min Impact Test Temp |
||
| 10 by 10 | 13 | 18 | 10 | 14 | F | C | |
| 10 by 7.5 | 10 | 14 | 8 | 11 | 1 | -50 | -45 |
| 10 by 6.67 | 9 | 12 | 7 | 9 | 3 | -150 | -100 |
| 10 by 5 | 7 | 9 | 5 | 7 | 6 | -50 | -45 |
| 10 by 3.33 | 5 | 7 | 3 | 4 | |||
| 10 by 2.5 | 4 | 5 | 3 | 4 | |||
Mechanical Testing
Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test
For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot. For small lots, at least one pipe shall be tested.
For material heat treated by the continuous process, tests shall be made on a sufficient number of pipes to constitute 5% of the lot, but in no case less than 2 pipe.
Hydrostatic Test
Impact Test - One notched bar impact test, consisting of breaking three specimens shall be made from each heat represented in a heat-treatment load on specimens taken from the finished pipe.
ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes Packaging & Marking
 ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes Packed |
 ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes Packed |
ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes are individually wrapped by hand to ensure that the high quality of the material is maintained and no damage in the last stages of production. We recommend Plywood cases or pallet packaging to ensure safe packaging and prompt delivery of the ordered consignment.
ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes come with imprints relevant to the job information (eg, heat number, size, material and part number). This information is also printed along all delivered ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes.
ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes Price
- Seamless Carbon Pipe
US $650-1000 / Metric Ton ( FOB Price) - ASTM A106 Grade A Carbon Steel Seamless Pipes
US $500-1850 / Ton ( FOB Price) - ASTM A106 Grade B Carbon Steel Seamless Pipes
US $500-1500 / Ton ( FOB Price) - ASTM A106 Grade C Carbon Steel Seamless Pipes
US $750-1000 / Ton ( FOB Price) - ASTM A53 Grade B Carbon Steel ERW Pipes
US $600-700 / Ton ( FOB Price) - ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes
US $650-1000 / Ton ( FOB Price) - ASTM A498 Carbon Steel Heat exchanger Tubes
US $650-900 / Metric Ton ( FOB Price) - Carbon Steel Seamless Tubes
US $650-1000 / Metric Ton ( FOB Price) - Carbon Steel OCTG Casing & Tubing
US $500-1500 / Ton ( FOB Price) - ASTM A105 Carbon Steel Round Bars
US $400-1500 / Ton ( FOB Price) - ASTM A350 LF2 Carbon Steel Round Bars
US $450-1500 / Ton ( FOB Price) - ASTM A420 Grade WPL6 Low Temperature Carbon Steel Buttweld Pipe Fittings
US $0.25-6.25 / Piece ( FOB Price) - ASTM A234 Grade WPB Carbon Steel Buttweld Pipe Fittings
US $1-500 / Piece ( FOB Price) - ASTM A234 Grade WPB-W Carbon Steel ERW Buttweld Pipe Fittings
US $1-500 / Piece ( FOB Price) - ASTM A860 Grade WPHY 42 Buttweld Pipe Fittings
US $466-503 / Piece ( FOB Price) - ASTM A860 Grade WPHY 52 Buttweld Pipe Fittings
US $465-500 / Piece ( FOB Price) - ASTM A860 Grade WPHY 56 Buttweld Pipe Fittings
US $589-600 / Piece ( FOB Price) - ASTM A860 Grade WPHY 60 Buttweld Pipe Fittings
US $394-420 / Piece ( FOB Price) - ASTM A860 Grade WPHY 65 Buttweld Pipe Fittings
US $1-6 / Piece ( FOB Price) - ASTM A860 Grade WPHY 70 Buttweld Pipe Fittings
US $1-5 / Piece ( FOB Price) - Carbon Steel ASTM A105 Forged Fittings
US $1-500 / Piece ( FOB Price) - Carbon Steel ASTM A350 LF2 Forged Fittings
US $1-500 / Piece ( FOB Price) - Carbon Steel ASTM A105 Forged Flanges
US $1-500 / Piece ( FOB Price) - Carbon Steel ASTM A350 LF2 Forged Flanges
US $1-500 / Piece ( FOB Price)
ASTM A333 Grade 6 Low Temperature Carbon Steel Pipes Useful Info
List of steel standards developed by ASTM:
| Designation | Title |
|---|---|
| ASTM A53 / A53M - 12 | Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless |
| ASTM A106 / A106M - 13 | Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service |
| ASTM A134 - 96(2012) | Standard Specification for Pipe, Steel, Electric-Fusion (Arc)-Welded (Sizes NPS 16 and Over) |
| ASTM A135 / A135M - 09 | Standard Specification for Electric-Resistance-Welded Steel Pipe |
| ASTM A139 / A139M - 04(2010) | Standard Specification for Electric-Fusion (Arc)-Welded Steel Pipe (NPS 4 and Over) |
| ASTM A178 / A178M - 02(2012) | Standard Specification for Electric-Resistance-Welded Carbon Steel and Carbon-Manganese Steel Boiler and Superheater Tubes |
| ASTM A179 / A179M - 90a(2012) | Standard Specification for Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes |
| ASTM A192 / A192M - 02(2012) | Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service |
| ASTM A210 / A210M - 02(2012) | Standard Specification for Seamless Medium-Carbon Steel Boiler and Superheater Tubes |
| ASTM A214 / A214M - 96(2012) | Standard Specification for Electric-Resistance-Welded Carbon Steel Heat-Exchanger and Condenser Tubes |
| ASTM A252 - 10 | Standard Specification for Welded and Seamless Steel Pipe Piles |
| ASTM A254 / A254M - 12 | Standard Specification for Copper-Brazed Steel Tubing |
| ASTM A381 - 96(2012) | Standard Specification for Metal-Arc-Welded Steel Pipe for Use With High-Pressure Transmission Systems |
| ASTM A423 / A423M - 09 | Standard Specification for Seamless and Electric-Welded Low-Alloy Steel Tubes |
| ASTM A450 / A450M - 10 | Standard Specification for General Requirements for Carbon and Low Alloy Steel Tubes |
| ASTM A498 - 06 | Standard Specification for Seamless and Welded Carbon Steel Heat-Exchanger Tubes with Integral Fins |
| ASTM A500 / A500M - 13 | Standard Specification for Cold-Formed Welded and Seamless Carbon Steel Structural Tubing in Rounds and Shapes |
| ASTM A501 - 07 | Standard Specification for Hot-Formed Welded and Seamless Carbon Steel Structural Tubing |
| ASTM A512 - 06(2012) | Standard Specification for Cold-Drawn Buttweld Carbon Steel Mechanical Tubing |
| ASTM A513 / A513M - 12 | Standard Specification for Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing |
| ASTM A519 - 06(2012) | Standard Specification for Seamless Carbon and Alloy Steel Mechanical Tubing |
| ASTM A523 - 96(2012) | Standard Specification for Plain End Seamless and Electric-Resistance-Welded Steel Pipe for High-Pressure Pipe-Type Cable Circuits |
| ASTM A524 - 96(2012) | Standard Specification for Seamless Carbon Steel Pipe for Atmospheric and Lower Temperatures |
| ASTM A530 / A530M - 12 | Standard Specification for General Requirements for Specialized Carbon and Alloy Steel Pipe |
| ASTM A556 / A556M - 96(2012) | Standard Specification for Seamless Cold-Drawn Carbon Steel Feedwater Heater Tubes |
| ASTM A587 - 96(2012) | Standard Specification for Electric-Resistance-Welded Low-Carbon Steel Pipe for the Chemical Industry |
| ASTM A589 / A589M - 06(2012) | Standard Specification for Seamless and Welded Carbon Steel Water-Well Pipe |
| ASTM A595 / A595M - 11 | Standard Specification for Steel Tubes, Low-Carbon or High-Strength Low-Alloy, Tapered for Structural Use |
| ASTM A618 / A618M - 04(2010) | Standard Specification for Hot-Formed Welded and Seamless High-Strength Low-Alloy Structural Tubing |
| ASTM A671 / A671M - 13 | Standard Specification for Electric-Fusion-Welded Steel Pipe for Atmospheric and Lower Temperatures |
| ASTM A672 / A672M - 09 | Standard Specification for Electric-Fusion-Welded Steel Pipe for High-Pressure Service at Moderate Temperatures |
| ASTM A691 / A691M - 09 | Standard Specification for Carbon and Alloy Steel Pipe, Electric-Fusion-Welded for High-Pressure Service at High Temperatures |
| ASTM A714 - 99(2009)e1 | Standard Specification for High-Strength Low-Alloy Welded and Seamless Steel Pipe |
| ASTM A733 - 13 | Standard Specification for Welded and Seamless Carbon Steel and Austenitic Stainless Steel Pipe Nipples |
| ASTM A787 / A787M - 09 | Standard Specification for Electric-Resistance-Welded Metallic-Coated Carbon Steel Mechanical Tubing |
| ASTM A795 / A795M - 13 | Standard Specification for Black and Hot-Dipped Zinc-Coated (Galvanized) Welded and Seamless Steel Pipe for Fire Protection Use |
| ASTM A822 / A822M - 04(2010) | Standard Specification for Seamless Cold-Drawn Carbon Steel Tubing for Hydraulic System Service |
| ASTM A847 / A847M - 12 | Standard Specification for Cold-Formed Welded and Seamless High-Strength, Low-Alloy Structural Tubing with Improved Atmospheric Corrosion Resistance |
| ASTM A865 / A865M - 06(2012) | Standard Specification for Threaded Couplings, Steel, Black or Zinc-Coated (Galvanized) Welded or Seamless, for Use in Steel Pipe Joints |
| ASTM A972 / A972M - 00(2010) | Standard Specification for Fusion Bonded Epoxy-Coated Pipe Piles |
| ASTM A984 / A984M - 03(2009) | Standard Specification for Steel Line Pipe, Black, Plain-End, Electric-Resistance-Welded |
| ASTM A1005 / A1005M - 00(2010) | Standard Specification for Steel Line Pipe, Black, Plain End, Longitudinal and Helical Seam, Double Submerged-Arc Welded |
| ASTM A1006 / A1006M - 00(2010) | Standard Specification for Steel Line Pipe, Black, Plain End, Laser Beam Welded |
| ASTM A1020 / A1020M - 02(2012) | Standard Specification for Steel Tubes, Carbon and Carbon Manganese, Fusion Welded, for Boiler, Superheater, Heat Exchanger and Condenser Applications |
| ASTM A1024 / A1024M - 02(2012) | Standard Specification for Steel Line Pipe, Black, Plain-End, Seamless |
| ASTM A1037 / A1037M - 05(2012) | Standard Specification for Steel Line Pipe, Black, Furnace-Butt-Welded |
| ASTM A1065 / A1065M - 09 | Standard Specification for Cold-Formed Electric-Fusion (Arc) Welded High-Strength Low–Alloy Structural Tubing in Shapes, with 50 ksi [345 MPa] Minimum Yield Point |
| ASTM A1076 / A1076M - 13 | Standard Specification for Cold Formed Carbon Structural Steel Tubing Made from Metallic Precoated Sheet Steel |
| ASTM A1085 - 13 | Standard Specification for Cold-Formed Welded Carbon Steel Hollow Structural Sections (HSS) |
